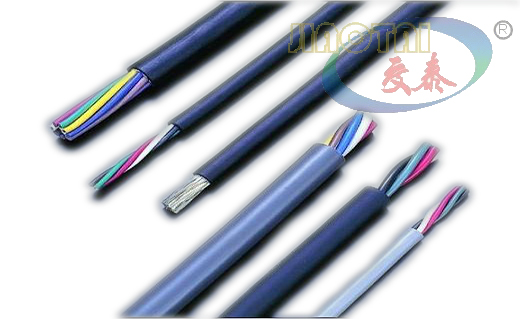

AVVR型300/300V铜芯聚氯乙烯绝缘扁型安装用软电线
|
AVVR型300/300V铜芯聚氯乙烯绝缘扁型安装用软电线
|
|
应用：适用于交流额定电压Uo/U为300V/300V以及以下电器、仪表和电子设备及自动化装置内部用线
说明： 产品执行标准GB8734.3—1998和北京市山鹰电缆有限公司企业标准
导体为多支退火裸铜绞合
聚氯乙烯绝缘
聚氯乙烯护套
额定电压Uo/U为300/300V
长期允许工作温度应不超过70℃
|
|
|
|
|
|
综合技术参数
|
|
序号
|
芯数×标称
截面mm2
|
导体结构
NO/.mm
|
绝缘厚度
规定值mm
|
护套厚度规定值mm
|
平均外径尺寸
|
20℃时导体电阻最大值
|
70'C时导体电阻最小值M／km
|
|
下限(mm)
|
上限(mm)
|
|
1
|
2×0.08
|
7/0.12
|
0.40
|
0.60
|
3.10
|
4.40
|
247.00
|
0.018
|
|
2
|
2×0.08
|
7/0.12
|
0.40
|
0.60
|
2.30×3.40
|
2.70×4.10
|
247.00
|
0.018
|
|
3
|
2×0.12
|
7/0.15
|
0.40
|
0.60
|
3.30
|
4.30
|
158.00
|
0.016
|
|
4
|
2×0.12
|
7/0.15
|
0.40
|
0.60
|
2.40×3.60
|
2.80×5.30
|
158.00
|
0.016
|
|
5
|
2×0.2
|
12/0.15
|
0.40
|
0.60
|
3.60
|
4.70
|
92.30
|
0.014
|
|
6
|
2×0.2
|
12/0.12
|
0.40
|
0.60
|
2.50×3.90
|
3.00×4.70
|
92.30
|
0.014
|
|
7
|
2×0.3
|
16/0.15
|
0.50
|
0.60
|
4.10
|
5.30
|
69.20
|
0.014
|
|
8
|
2×0.4
|
16/0.15
|
0.50
|
0.60
|
2.80×4.40
|
3.40×5.30
|
69.20
|
0.014
|
|
9
|
2×0.4
|
23/0.15
|
0.50
|
0.60
|
4.40
|
5.70
|
48.20
|
0.013
|
|
10
|
2×0.4
|
23/0.15
|
0.50
|
0.60
|
2.90×4.70
|
3.50×5.70
|
48.20
|
0.013
|
|
11
|
3×0.12
|
7/0.15
|
0.40
|
0.60
|
3.40
|
4.50
|
158.00
|
0.016
|
|
12
|
3×0.2
|
12/0.15
|
0.40
|
0.60
|
3.80
|
4.90
|
92.30
|
0.014
|
|
13
|
3×0.3
|
16/0.15
|
0.50
|
0.60
|
4.40
|
5.70
|
69.20
|
0.014
|
|
14
|
3×0.4
|
23/0.15
|
0.50
|
0.60
|
4.70
|
6.00
|
48.20
|
0.013
|
|
15
|
4×0.12
|
7/0.15
|
0.40
|
0.60
|
3.80
|
4.90
|
158.00
|
0.016
|
|
16
|
4×0.2
|
12/0.15
|
0.40
|
0.60
|
4.20
|
5.40
|
92.30
|
0.014
|
|
17
|
4×0.3
|
16/0.15
|
0.50
|
0.60
|
4.80
|
6.20
|
69.20
|
0.014
|
|
18
|
4×0.4
|
23/0.15
|
0.50
|
0.60
|
5.10
|
6.60
|
48.20
|
0.013
|
|
19
|
5×0.12
|
7/0.15
|
0.40
|
0.60
|
4.10
|
5.30
|
158.00
|
0.016
|
|
20
|
5×0.2
|
12/0.15
|
0.40
|
0.60
|
4.50
|
5.80
|
92.30
|
0.014
|
|
21
|
5×0.3
|
16/0.15
|
0.50
|
0.60
|
5.30
|
6.70
|
69.20
|
0.014
|
|
22
|
5×0.4
|
23/0.15
|
0.50
|
0.60
|
5.60
|
7.20
|
48.20
|
0.013
|
|
23
|
6×0.12
|
7/0.15
|
0.40
|
0.60
|
4.40
|
5.70
|
158.00
|
0.016
|
|
24
|
6×0.12
|
12/0.15
|
0.40
|
0.60
|
4.90
|
6.30
|
92.30
|
0.014
|
|
25
|
6×0.13
|
16/0.15
|
0.50
|
0.60
|
5.70
|
7.30
|
69.20
|
0.014
|
|
26
|
6×0.4
|
23/0.15
|
0.50
|
0.60
|
6.20
|
7.80
|
48.20
|
0.013
|
|
27
|
7×0.12
|
7/0.15
|
0.40
|
0.60
|
4.40
|
5.70
|
158.00
|
0.016
|
|
28
|
7×0.2
|
12/0.15
|
0.40
|
0.60
|
4.90
|
6.30
|
92.30
|
0.014
|
|
29
|
7×0.3
|
16/0.15
|
0.50
|
0.60
|
5.70
|
7.30
|
69.20
|
0.014
|
|
30
|
7×0.4
|
23/0.15
|
0.50
|
0.60
|
6.20
|
7.80
|
48.20
|
0.013
|
|
31
|
10×012
|
7/0.15
|
0.40
|
0.60
|
5.70
|
7.20
|
158.00
|
0.016
|
|
32
|
10×02
|
12/0.15
|
0.40
|
0.60
|
6.30
|
8.00
|
92.30
|
0.014
|
|
33
|
10×03
|
16/0.15
|
0.50
|
0.80
|
7.80
|
9.70
|
69.20
|
0.014
|
|
34
|
10×04
|
23/0.15
|
0.50
|
0.80
|
8.30
|
10.40
|
48.20
|
0.013
|
|
35
|
12×0.12
|
7/0.15
|
0.40
|
0.60
|
5.80
|
7.40
|
158.00
|
0.016
|
|
36
|
12×0.3
|
12/0.15
|
0.40
|
0.60
|
6.50
|
8.20
|
92.30
|
0.014
|
|
37
|
12×0.4
|
16/0.15
|
0.50
|
0.60
|
8.00
|
10.10
|
69.20
|
0.014
|
|
38
|
23×0.15
|
23/0.15
|
0.50
|
0.80
|
8.60
|
10.80
|
48.20
|
0.013
|
|
39
|
14×0.12
|
7/0.15
|
0.40
|
0.60
|
6.10
|
7.80
|
158.00
|
0.016
|
|
40
|
14×0.2
|
12/0.15
|
0.40
|
0.80
|
7.20
|
9.10
|
92.30
|
0.014
|
|
41
|
14×03
|
16/0.15
|
0.50
|
0.80
|
8.40
|
10.60
|
48.20
|
0.014
|
|
42
|
14×04
|
23/0.15
|
0.50
|
0.80
|
9.10
|
11.30
|
158.00
|
0.013
|
|
43
|
16×0.12
|
7/0.15
|
0.40
|
0.60
|
6.50
|
8.20
|
92.30
|
0.016
|
|
44
|
16×0.2
|
12/0.15
|
0.40
|
0.80
|
7.60
|
9.60
|
69.30
|
0.014
|
|
45
|
16×0.3
|
16/0.15
|
0.50
|
0.80
|
8.90
|
11.10
|
69.20
|
0.014
|
|
46
|
16×0.4
|
23/0.15
|
0.50
|
0.80
|
9.60
|
11.90
|
48.20
|
0.0.13
|
|
47
|
190.12
|
7/0.15
|
0.40
|
0.80
|
7.20
|
9.10
|
158.00
|
0.016
|
|
48
|
190.2
|
12/0.15
|
0.40
|
0.80
|
8.10
|
10.10
|
92.30
|
0.014
|
|
49
|
190.3
|
16/0.15
|
0.50
|
0.80
|
9.40
|
11.70
|
69.20
|
0.014
|
|
50
|
190.4
|
23/0.15
|
0.50
|
0.80
|
10.10
|
12.60
|
48.20
|
0.013
|
|
51
|
240.12
|
7/0.15
|
0.40
|
0.80
|
8.40
|
10.60
|
158.00
|
0.016
|
|
52
|
240.2
|
12/0.15
|
0.40
|
0.80
|
9.40
|
11.70
|
92.30
|
0.014
|
|
53
|
240.3
|
16/0.15
|
0.50
|
1.00
|
11.40
|
14.20
|
69.20
|
0.014
|
|
54
|
240.4
|
23/0.15
|
0.50
|
1.00
|
12.30
|
15.20
|
48.20
|
0.013
|
|
|
